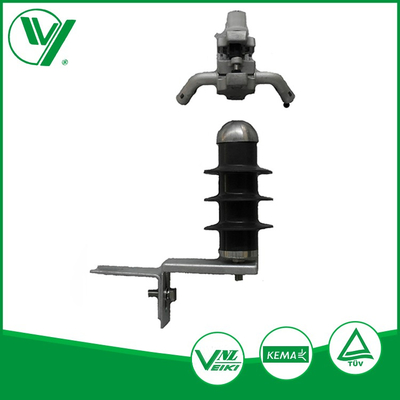

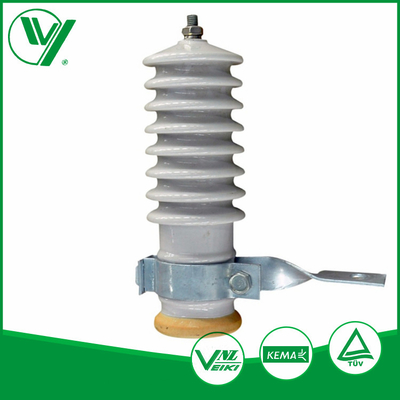

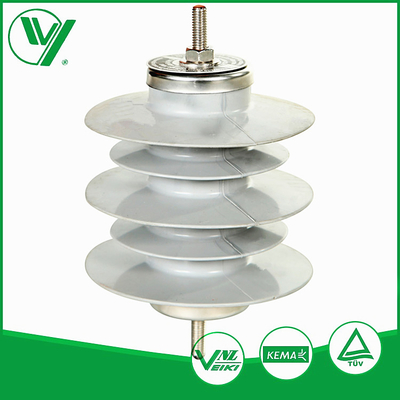

YH5CX-12 12kV C-Type Gap Metal Oxide Arrester for AC/DC Systems

MOQ:	30
harga:	1

Detail Information

Sertifikasi:

ISO9001

Model No.:

YH5CX-12

Jenis instalasi:

Tetap

Bahan:

Zno

Debit arus:

5kA

Voltase:

12KV

Kapasitas aliran:

100kA

Level CTI:

Tegangan sistem nominal:

Tegangan Dinilai:

Tegangan referensi minimum:

Frekuensi daya tahan:

Impuls arus tinggi:

65/80

Kapasitas SW melalui aliran:

150/250

Jarak Rambat:

IV Level Polusi Berat

Membentuk:

Berbentuk kubus

Menyoroti:

Product Description

C-Type Gap 10kv Metal Oxide Arrester

Product Specifications

Attribute	Value
Model NO.	YH5CX-12
Installation	Fixed
Application	AC/DC System
Size	Medium
Operation Voltage	High Voltage
Shape	Cuboid
Material	ZnO
Brand	Yongde
Breaking Capacity	High Voltage Circuit Breakers
Arc-Extinguishing Medium	Air
Discharge Current	5kA
Voltage	12kV
Transport Package	by Carton
Specification	IEC60099-4
Trademark	YongDe
Origin	China
HS Code	85354000
Production Capacity	500,000PCS/Year

Product Features

Technical Parameters

Type	Nominal System Voltage	Rated Voltage	Minimum Reference Voltage under 1 mA DC	MRV under 1/5 μs Steep Discharge Current	MRV under 8/20 μs Lightning Discharge Current	MRV under 1.2/50μs Impulse Discharge Voltage	Power Frequency Withstand Voltage	4/10 μs High Current Impulse Twice (kA)	2ms SW Through-flow Capacity A/18
YH5CX-13/40	10	17	20	46	40	100	26	65/80	150/250
YH5CX5-17/50	10	17	25	57.5	50	100	28	85/100	250/400
YH5CX5-26/65	20	26	37	75	65	160	60	85/100	250/400
YH5CX-29/73	20	29	41	75	65	160	65	85/100	250/400
