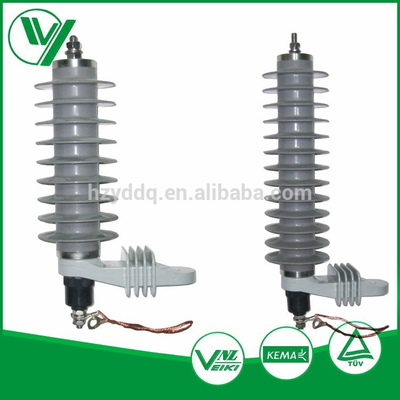

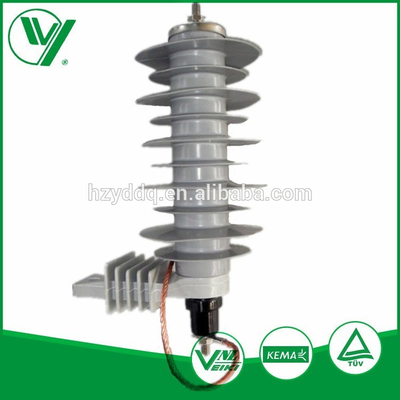

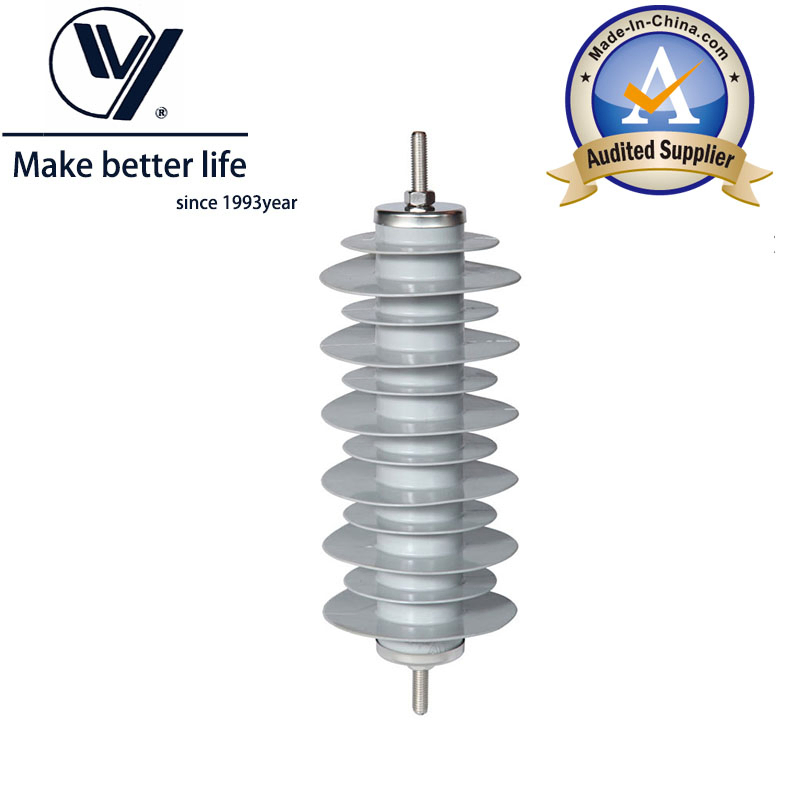

YH10W-36 Surge Arrester for Substation Lightning Protection

MOQ:	1
harga:	40

Detail Information

Product Description

Detail Information

Tegangan Dinilai:

36 KV

MOCV:

29 kV

Arus nominal:

10 kV

Residu impuls curam:

106 kV di 5KA

Residu impuls kilat:

98 KV di 5KA

Mengalihkan residu impuls:

75 kV di 1Ka

Tegangan referensi DC:

51 kV di 1mA

Level pelepasan garis:

Arus durasi panjang:

400 A pada 2ms

Impuls arus tinggi:

100 Ka pada 4/10μs

Lightning tahan:

200 kV

Frekuensi daya tahan:

70 kV (kering/basah)

0.1S TOV:

43.2 kV

1S tov:

41.4 kV

10S TOV:

39,6 kV

Menyoroti:

substation surge arrester with warranty

lightning protection arrester for substation

YH10W-36 surge arrester

Product Description

Competitive High Quality Surge Arrester (YH10W-36)

Product Specifications

Attribute	Value
Model NO.	YH10W-36
Specification	SGS
Trademark	YONG′DE
Origin	China
HS Code	85354000
Production Capacity	5000 Pieces Per Month

Technical Specifications

Type	YH10W5-36/98
Rated voltage (kV)	36
MOCV (kV)	29
Nominal Current (kV)	10
Residual voltage of steep impulse at 5kA (kV)	106
8/20µS Residual voltage of lightning impulse current at 5kA (kV)	98
Residual voltage of switching impulse current at 1kA (kV)	75
1mA D.C reference voltage (kV)	51
Line discharge level	1
2mS long duration impulse current (A)	400
Material employed in series non-linear resistor	Zinc Oxide

Surge Arrester Working Conditions

Low Voltage Lightning Arrester
Working conditions:
- Environment temperature: -40°C to +40°C
- Altitude: <1000m
- 48Hz < Rated frequency < 62Hz
- Power frequency voltage should not exceed continuous running voltage
- Maximum wind speed should be less than 35m/s
- Earthquake intensity should be less than 7 degree
- If used in contamination area, should be noted in advance

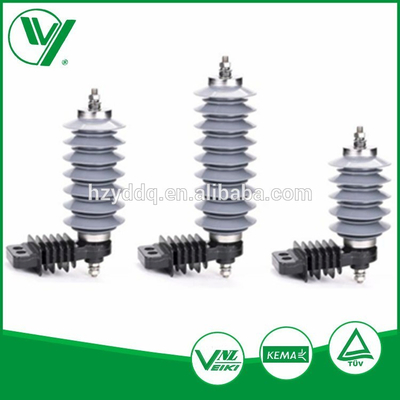

Product Images
